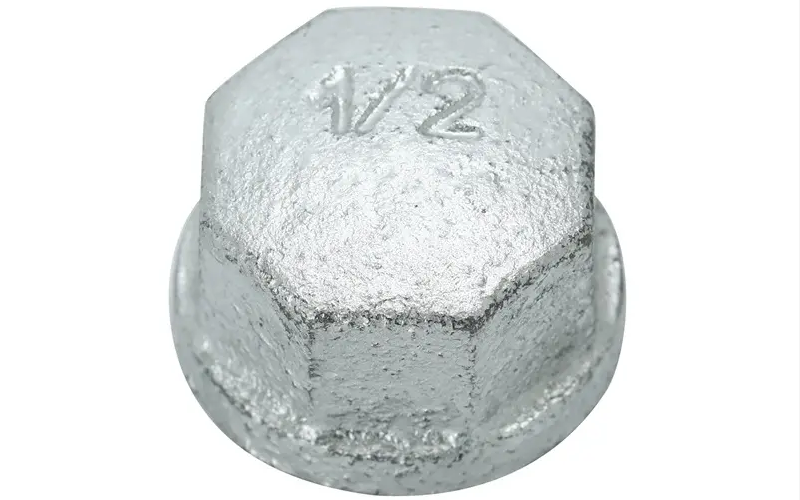

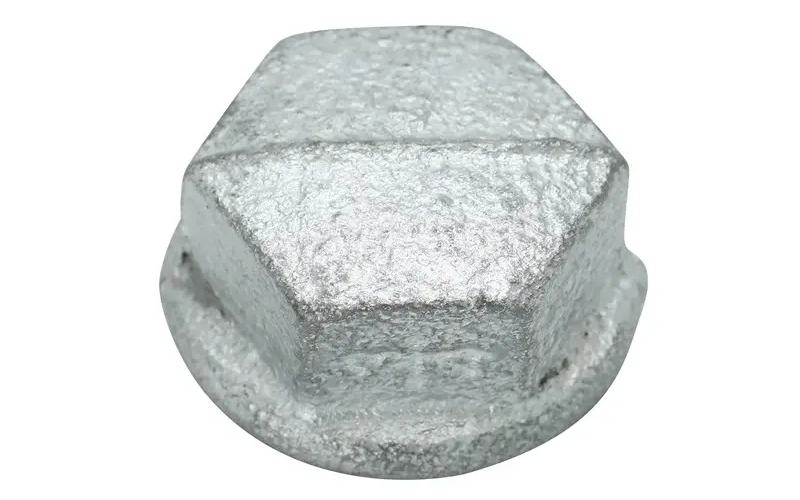

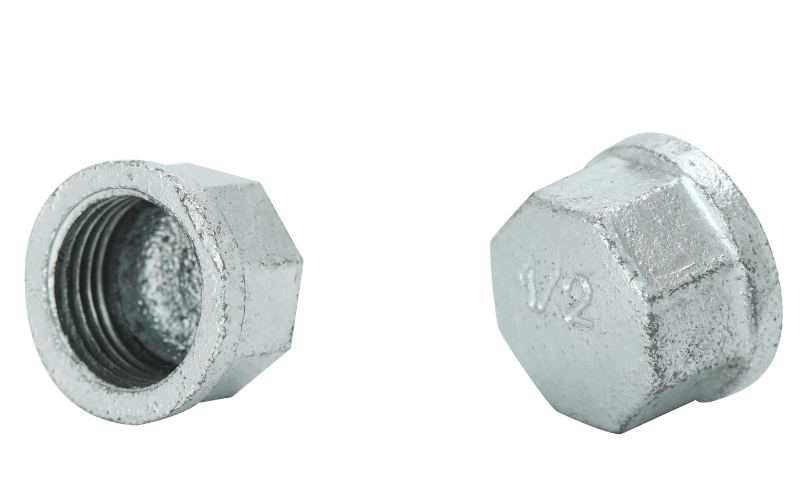

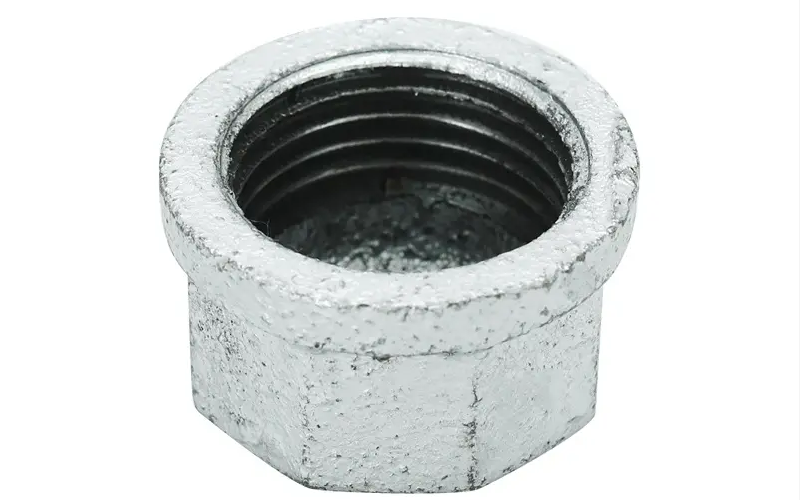

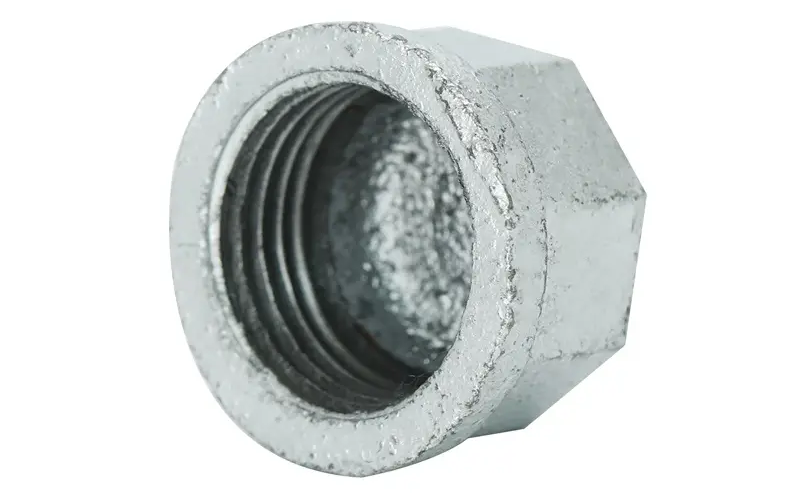

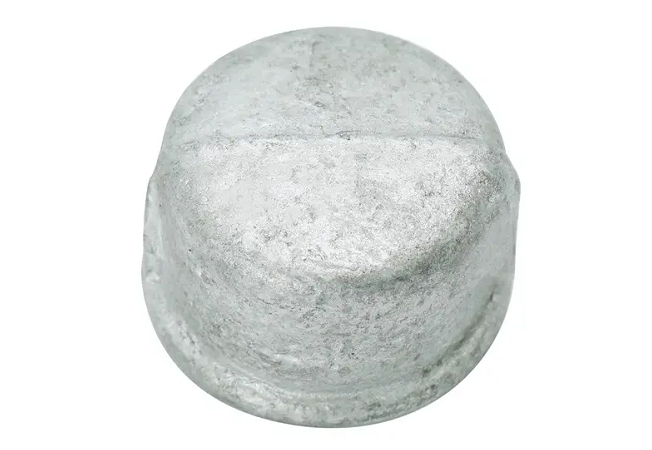

What is a Pipe End Cap Stainless Steel?
The Pipe End Cap Stainless Steels has a rounded shape and is fitted to the end of the pipe. It can be threaded, welded or pressure-locked to the pipe to ensure that the end of the pipe is sealed and to prevent water or leakage. Stainless steel makes it possible to withstand the harsh environment of corrosion, heat and pressure.
| Product Name | Pipe End Cap Stainless Steel |
| Material | Stainless Steel 201, 304, 304L, 316, 316L |
| Model | Elbow, Tee, Cross, Socket, Nipple, Coupling, Plug, Bushing, Cap, Nut, Union etc. |
| Working Pressure | 150LB |
| Application | General |
| Size | DN6~100, 1/8″~4″ |
| Medium | Oil, chemical industry, water conservancy,
electric power, boiler, machinery, metallurgy, sanitary, construction etc |
| Thread Type | NPT, BSPP, BSPT, DIN |
Implementation standard for Pipe End Cap Stainless Steels
ANSI/ASME:ANSI/ASME B16.9, ANSI/ASME B16.11, ANSI/ASME B16.28,etc
EN: EN 10253-4, EN 10241, etc
DIN: DIN 2617, DIN 2618, etc
JIS: JIS B2311, JIS B2312, etc
While these are common standards, there may be other specific national or industrial standards that apply in different countries and areas.In practice, it is necessary to select a Pipe End Cap Stainless Steels that meets the requirements of the specific project and the national/regional rules.
Pipe End Cap Stainless Steel features
1.Corrosion Resistance: Pipe End Cap Stainless Steel is made of stainless steel and has good anti-corrosion performance.It can withstand the corrosion of various chemicals, such as acids, alkalis, salts, and so on.
2.Excellent sealing: The Pipe End Cap Stainless Steel is designed so that it fits tightly with the end of the tube to ensure that the tube is effectively sealed. Prevents the leakage of fluid, gas diffusion and foreign matter into the pipeline, and maintains the integrity of the system and operation reliability.
3.Long Life and Low Maintenance Costs: Because of its corrosion-resistant and oxidation-resistant properties, Pipe End Cap Stainless Steel have a long life and low maintenance cost.They are less prone to corrosion, rust and damage, and do not need to be repaired or replaced frequently.
4.Clean and hygienic: The surface of stainless steel is smooth, and it is easy to clean and disinfect. As a result, Pipe End Cap Stainless Steel has been widely applied in food, pharmacy, medicine, etc., to guarantee the sanitary and security of pipeline system.

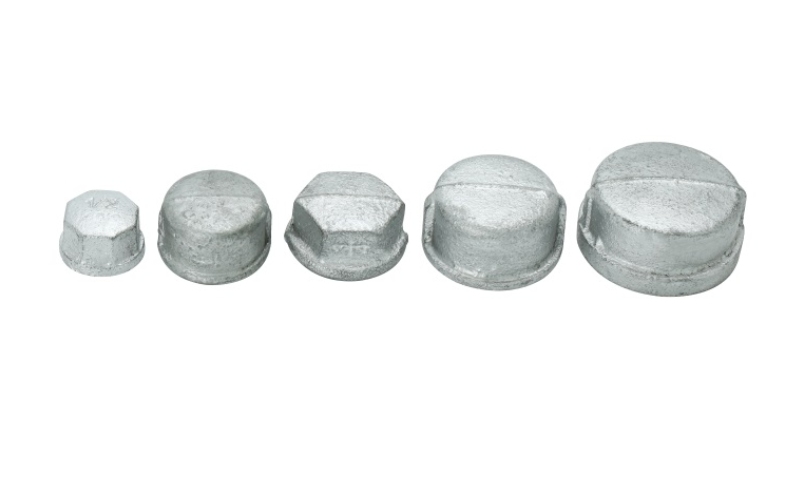

5.Variety of sizes and connections: Pipe End Cap Stainless Steel is available in a wide variety of sizes and connections, which are suitable for different pipe systems.They can be customized to various diameters, wall thicknesses and connection types to suit a wide range of applications.
6.High Strength and Pressure Resistance: The top of the Pipe End Cap Stainless Steel is strong and pressure-resistant, so it can withstand some pressure and shock.Thus, the closure of the end of the pipe system is stable and the system is safe.
Overall, Pipe End Cap Stainless Steel is characterised by corrosion resistance, high strength, good sealing, long life and low maintenance costs. This makes them ideal for a wide range of industrial applications.
What are the uses of Pipe End Cap Stainless Steels?
1.Chemical industry: Pipe End Cap Stainless Steel can be used for termination and blocking in chemical pipeline systems to ensure pipeline safety and integrity.
2.Oil and gas industry: In oil and gas transmission pipelines, Pipe End Cap Stainless Steel is used to close the end of the pipeline or carry out pipeline termination to prevent leakage and the entry of external impurities.
3.Food Processing Industry: Pipe End Cap Stainless Steel is widely used in the food processing industry in piping systems to ensure hygiene and food safety requirements.
4.Pharmaceutical industry: Pipe End Cap Stainless Steel is used in piping systems in the pharmaceutical industry to ensure the purity and safety of medicines.
5.Shipbuilding and marine engineering: Pipe End Cap Stainless Steel is used in piping systems in shipbuilding and marine engineering to cope with seawater corrosion and harsh environmental conditions.
6.Power industry: Pipe End Cap Stainless Steel is used in piping systems in the power industry to seal and terminate power equipment and transmission pipelines.
7.Wastewater treatment: Pipe End Cap Stainless Steel is used in pipework systems in wastewater treatment plants to ensure the safe handling of wastewater and to prevent leaks.
These are just some of the common uses for Pipe End Cap Stainless Steel, and depending on the industry and specific needs, there may be other areas of application.
What are the types of Pipe End Cap Stainless Steels?
1.Socketed Pipe End Cap Stainless Steel:This type of Pipe End Cap Stainless Steel has an embedded design, which can be inserted into the end of the tube, and then fixed by welding or other means. The utility model is easy to install and remove, suitable for certain special pipe system.
2.Clamped Pipe End Cap Stainless Steel: This type of Pipe End Cap Stainless Steel uses a clip to grip the end of the tube to provide a tight seal and connection. It is often used in piping systems that need to be dismantled and maintained frequently.
3.Hemispherical Pipe End Cap Stainless Steel: The hemispherical design is suitable for use in vessels and tanks where circular closure is required.
4.Special Shape Pipe End Cap Stainless Steel: Custom made Pipe End Cap Stainless Steel, with special shapes, multiple openings, or other special designs to meet the specific requirements of the piping system.
The choice of these types of Pipe End Cap Stainless Steel is based on the particular application, and the best choice is determined by the size of the tube, the operation condition and the connecting method.

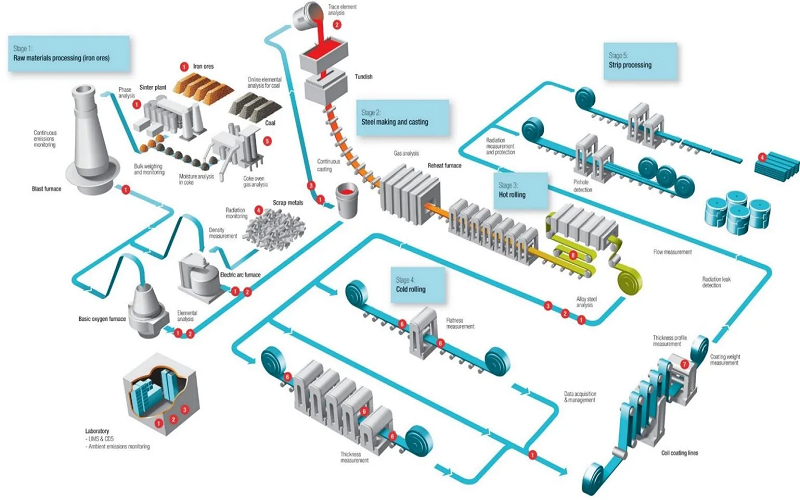

Manufacturing process of Pipe End Cap Stainless Steel
The manufacturing process of Pipe End Cap Stainless Steel includes: material preparation、forming process、surface treatment、inspection and quality control、marking and packaging.
The difference between Pipe End Cap Stainless Steels and Aluminium pipe caps
1.Material:Pipe End Cap Stainless Steel is made of stainless steel, such as 304, 316L, and have excellent anti-corrosion and mechanical strength.On the other hand, aluminium pipe caps are made from low-density aluminum materials with excellent heat conductivity.
2.Corrosion resistance: Pipe End Cap Stainless Steel has good corrosion resistance, can resist acid, alkali, salt, etc. It is applicable in damp and corrosive environment.Aluminum pipe cap has poor corrosion resistance and is prone to corrosion and oxidation.
3.Strength and hardness: Pipe End Cap Stainless Steel is strong and hard, able to bear some pressure and shock. While aluminum pipe caps are relatively lighter and softer, with lower strength and hardness.
4.Thermal conductivity: Aluminium material has good thermal conductivity and can conduct heat quickly. While stainless steel has poorer thermal conductivity.
5.Price: Generally speaking, aluminium pipe caps are cheaper than stainless steel ones, as they are cheaper.
6.Application: Pipe End Cap Stainless Steel cover is widely applied in the fields of chemical, oil, food processing and so on.Aluminum pipe caps are mainly used in the case where the requirements are lighter and more efficient, such as aerospace and electronics.
Generally speaking, Pipe End Cap Stainless Steel has good anti-corrosion and mechanical strength. It is suitable for the requirement of anti-corrosion and high intensity.The aluminum tube cap is light in weight and good in heat conduction. It is suitable for the need of light weight and heat dissipation in certain situations.When selecting, it is necessary to select the appropriate application environment, request and budget.
Precautions for the use of Pipe End Cap Stainless Steels
1.Note on corrosive media: Although stainless steel has a good corrosion-resistant property, it can be influenced by some strong acids, alkalis or salts.In handling corrosive media, careful assessment of its impact on stainless steel is required, and proper protection measures are adopted.
2.Tightening force control: Be careful to control the tightening force when installing Pipe End Cap Stainless Steel, so as to prevent excessive tightening or damage or distortion.
3.Prevention of impact and damage: Ensure that the Pipe End Cap Stainless Steel is not struck or damaged mechanically in order to preserve its integrity and functionality.
4.Regular inspection and maintenance:Periodically inspect the state of Pipe End Cap Stainless Steel, including sealing, surface and material integrity. In case of damage, corrosion, or leakage, take immediate action to repair or replace them.
5.Follow manufacturer’s instructions: Follow the instructions and recommendations of the manufacturer of Pipe End Cap Stainless Steel, including installation, use and maintenance, to ensure that the stainless steel tube cover is properly and safely used.
All these precautions can be used to guarantee the safety, tightness and performance of Pipe End Cap Stainless Steel as well as prolong their service life. According to the requirements of your particular product and application, please refer to the relevant manufacturers’ recommendations and industry standards.
