420 Stainless Steel Round Hole Plate Introduction
420 Stainless steel round hole plate is a type of metal made by punching on 420 stainless steel plates to form round hole patterns. Nowadays, the round hole perforation is the most popular perforation pattern.
420 Stainless steel is a martensitic stainless steel with similar corrosion resistance to 410. In addition, it has increased strength and hardness and is magnetic in both hardened and annealed conditions. In order to attain maximum corrosion resistance, 420 stainless steel can be fully hardened and stress relieved.
| Grade | C | Si | Mn | P | S | Cr |
| 420 | 0.16 -0.25 | 1.00 | 1.5 max | 0.04 | 0.015 | 12-14 |
420 Stainless Steel Round Hole Plate Specification
| Raw Material | stainless steel plate |
| Standards | JIS, AISI, ASTM, GB, DIN, EN |
| Grades | 420 |
| Thickness | 1 – 12 mm or according to the customer’s requirements |
| Width | 600 – 1500 mm or according to the customer’s requirements |
| Length | 800 – 3000 mm or according to the customer’s requirements |
| Hole size | 0.2 -155 mm or according to the customer’s requirements |
| Hole patterns | round |
| Finish | 2B, 2D, BA, No 4., HL, 6K/8K, brushed, polished, etc |
| Punching arrangement methods | straight row (90 degrees straight ), staggered row (60 degrees staggered or 45 degrees staggered), irregular row, combination arrangement of large and small holes, etc |
| Value-added service | cutting, rolling, folding, welding, bending, etc., |
| Supply Form | in rolls/panels |
| Package | plastic film packing and pallet transportation, or according to the customer’s requirements |
420 Stainless Steel Round Hole Plate Properties
1. Good Corrosion Resistance: as a member of the martensitic stainless steel family, 420 stainless steel possesses a commendable level of corrosion resistance.
2. Heat Resistance: it can retain its properties even under high temperatures.
3. High Strength: Its robust strength makes it a fitting choice for applications that demand resistance to wear and abrasion.
4. Versatility: the perforated designs can reduce weight and allow the passage of light, liquid, sound, and air while providing a decorative or decorative effect.

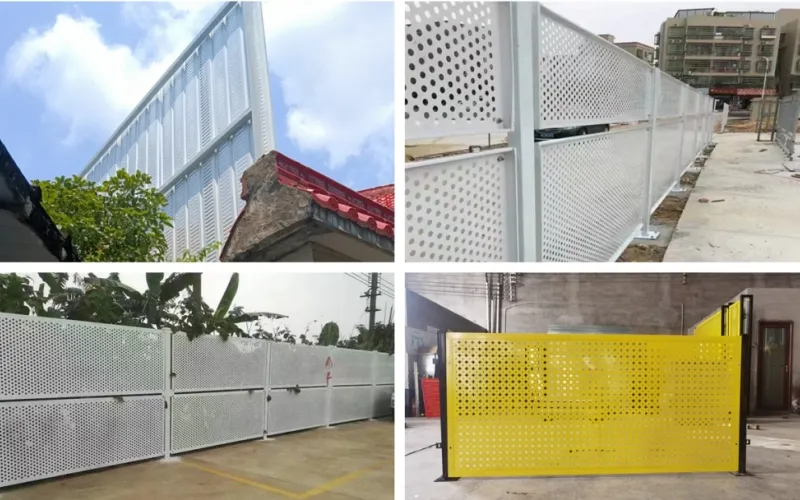

420 Stainless Steel Round Hole Plate Applications
420 Stainless steel round hole plate finds its indispensable utility in different applications. It can be used in:
1. Protective guards of mechanical equipment
2. Handicraft manufacturing
3. High-end speaker grille
4. Ventilation and heat dissipation of grain
5. Filtration equipment like filter valves
6. Fencing mesh
7. Acoustic panels
8. Barriers for highways, railways, subways, and other transportation
9. Kitchenware like fruit baskets, food covers, dishes, and shelves
10. Furniture like benches, chairs, and tables
11. Pedals and stairs
12. Walling and ceiling
420 Stainless Steel Round Hole Plate Supplier
Gnee Steel is a leading stainless steel supplier in China with more than 15 years of experience. We can produce high-quality stainless steel perforated plates in a wide variety of thicknesses, widths, lengths, grades, and finishes. Besides, the customization order is also acceptable, which can be produced within 7-15 days. If you have any needs, welcome to contact us to start your steel business!
