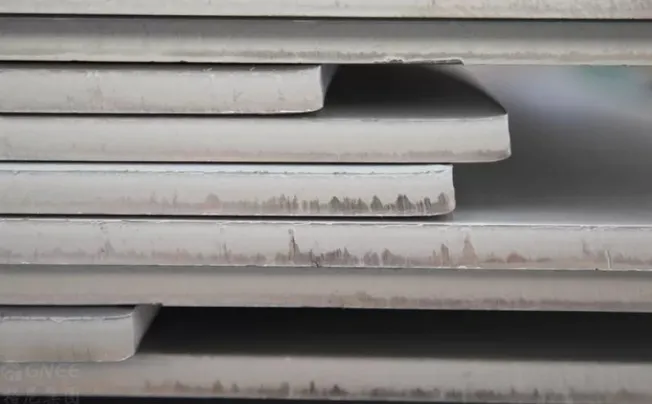

What Is 410 Stainless Steel Medium Thick Plate?
410 Stainless steel medium thick plate refers to stainless steel plates of 4-25 mm in 410 grade.
410 Stainless steel is a general-purpose martensitic stainless steel, which has 12% chromium in its chemical composition. It can be heat treated to get a wide range of enhanced mechanical properties and also possesses high strength and hardness coupled with good corrosion resistance. Additionally, it is ductile in the annealed condition and can be formed, and it remains magnetic in all conditions. However, this alloy is quite prone to chloride attacks, especially in the oxidizing environments.
410 Stainless Steel Chemical Composition
| Si | C | Mn | P | Cr | S | Ni | Mo | N |
| 1.0 Max | 15 Max | 1.0 Max | 0.40 Max | 11.5 – 13.5 | 0.3 Max | 0.5 Max | – | – |
410 Stainless Steel Medium Thick Plate Size Chart
| Standard | DIN, JIS, AISI, ASTM, GB, BS |
| Grade | 410 |
| Thickness | 4-25 mm |
| Width | 600 – 1500 mm |
| Length | 800 – 2000 mm |
| Techniques | hot rolled and cold rolled |
| Surface | 2B, 2D, BA, NO. 1, NO. 4, NO. 8, 8K, mirror, embossed, hair line, sandblast, polished, brushed, mill, etching, etc |
| Customization | Acceptable |

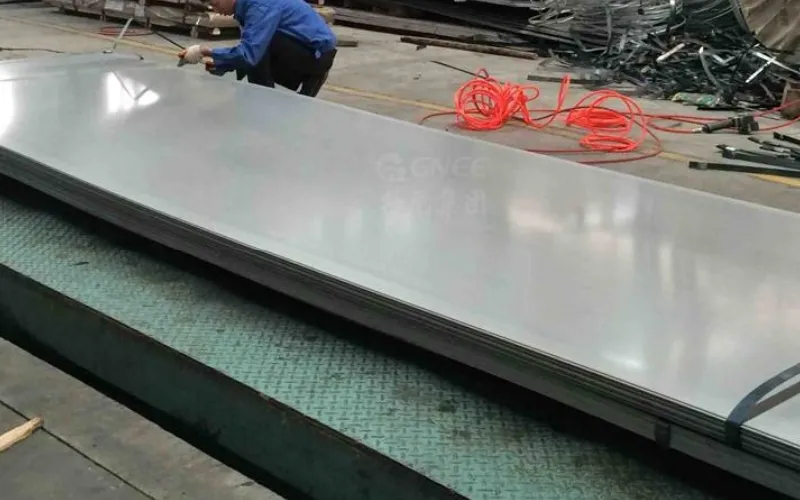

| Package | standard export seaworthy package |
410 Stainless Steel Medium Thick Plate Advantages
410 stainless steel medium thick plate offers several advantages that render it a preferred choice in various industries.
1. Corrosion Resistance
410 Stainless steel exhibits excellent corrosion resistance, making it highly suitable for use in environments where exposure to moisture, chemicals, and certain acids is common.
2. Heat Resistance
410 Stainless steel is capable of enduring elevated temperatures without experiencing significant deformation or loss of strength. This exceptional property renders it ideal for applications that involve high-temperature environments, such as heat exchangers, furnace components, and automotive exhaust systems.
3. Oxidation Resistance
410 Stainless steel resists oxidation up to 1292°F (700°C) continuously, and up to 1500°F (816°C) on an intermittent basis.
4. Mechanical Properties
410 Stainless steel offers outstanding mechanical properties, including high strength, hardness, and wear resistance. It can be hardened through various heat treatment processes, such as quenching and tempering, to further enhance its mechanical properties.
| Yield Strength
0.2% Offset |
Ultimate Tensile
Strength |
Elongation
in 2 in. |
Hardness | ||
| psi | (MPa) | psi | (MPa) | % | (max.) |
| 42,000 | 290 | 74,000 | 510 | 34 | 96 Rb |
5. Magnetic Properties
One of the distinguishing characteristics of 410 stainless steel lies in its magnetic properties. It exhibits magnetic behavior owing to its microstructure, which consists of ferrite and martensite phases. This magnetic property facilitates easy identification and separation of 410 stainless steel from non-magnetic materials in recycling processes.
6. Durability
The durability of this stainless steel variety ensures a prolonged lifespan and effectively reduces maintenance costs. Its ability to withstand corrosion and wear guarantees the longevity of the components or structures it is used in, providing a cost-effective solution for industrial requirements.

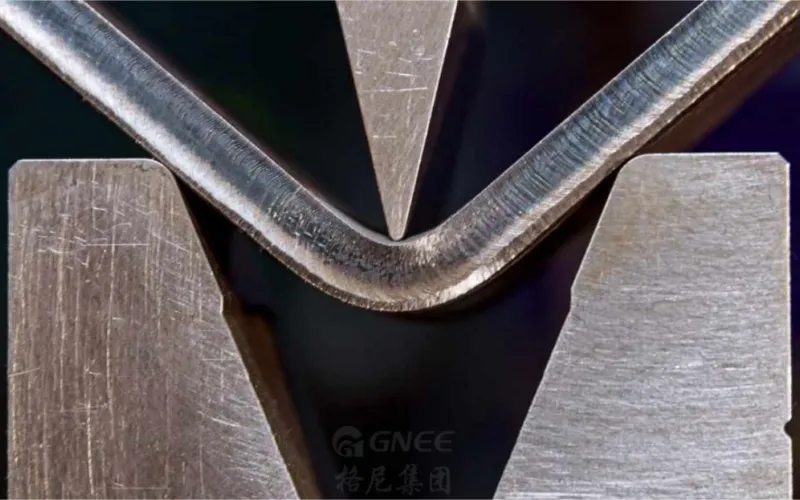

7. Easy to Fabricate
410 stainless steel medium thick plate is renowned for its excellent machinability and weldability. It can be effortlessly fabricated into different shapes and sizes, allowing for flexibility in design and manufacturing processes. This ease of fabrication not only aids in the production of customized components or structures but also helps reduce production time and costs.
8. Cost-Effective Solution
Opting for 410 stainless steel medium thick plates can prove to be highly cost-effective in the long run. Its durability and resistance to corrosion and wear minimize the need for frequent replacements or repairs, thereby reducing overall expenses.
410 Stainless Steel Medium Thick Plate Usage
410 stainless steel medium thick plate finds extensive applications across various industries due to its exceptional properties. They are:
1. Construction Industry: roofs, interior and exterior decoration of buildings, household stairs, guardrails, bridge-building, structural elements.
2. Aerospace Industry: aircraft engines, landing gear components, and structural parts.
3. Automotive Industry: exhaust systems, mufflers, catalytic converters, and other components that are exposed to high temperatures and corrosive environments.
4. Food Processing: food storage tanks, processing vessels, and conveyor systems.
5. Kitchen Appliances: sinks, shelves, cabinets, cutlery, etc.
6. Manufacturing: it can be processed into fabricating 410 stainless steel patterned plates, 410 stainless steel corrugated plates, and 410 stainless steel perforated plates.
7. Public Uses: containers, furnace shells, gate valves, welded components, etc.
410 Stainless Steel Medium Thick Plate Maintenance and Care
When it comes to maintaining and caring for 410 stainless steel medium thick plates, there are several important factors to consider.
1. About Cleaning
When cleansing 410 stainless steel medium thick plates, it is important to employ the appropriate techniques so as not to mar its exquisite surface. Begin by delicately removing any loose dirt or debris with a soft cloth or brush. Then, employ a mild detergent or stainless steel cleaner mixed with warm water to gently scrub the surface. Eschew the use of abrasive cleaners or scrub brushes, as they have the potential to inflict scratches upon the stainless steel. Thoroughly rinse the plate with clean water and diligently dry it with a soft cloth to prevent unsightly water spots from forming.
2. Avoiding Harsh Chemicals
Harsh chemicals, such as bleach or ammonia-based cleaners, ought to be shunned when tending to 410 stainless steel medium thick plates. These chemicals possess the ability to cause discoloration or inflict damage on the surface. Instead, opt for mild detergents or stainless steel cleaners specifically formulated for this type of material. Always peruse and adhere to the instructions on the cleaning product to ensure both its safety and effectiveness.
3. Regular Inspections and Maintenance
Regular inspections and maintenance are of paramount importance in preserving the optimal condition of 410 stainless steel medium thick plates. Diligently inspect the plate at regular intervals for any indications of corrosion, scratches, or other forms of damage. Should any issues be detected, prompt action must be taken to rectify them. Regularly cleanse the plate as previously mentioned to eradicate dirt and prevent the accumulation of grime. Additionally, contemplate applying a protective coating or sealant to augment the plate’s resistance to corrosion.
4. Proper Storage and Handling
Proper storage and handling of 410 stainless steel medium thick plate possess the ability to significantly elongate its lifespan. Store the plate in a pristine, arid area far removed from moisture and humidity. Refrain from stacking or placing weighty objects atop the plate to avert deformation or unsightly scratches. When manipulating the plate, employ gloves to prevent the unsightly imprint of fingerprints or oils upon its surface. If the plate necessitates transportation, ensure that it is adequately safeguarded to prevent any harm befalling it during transit. If you have some other questions, feel free to contact Gnee Steel for help.
