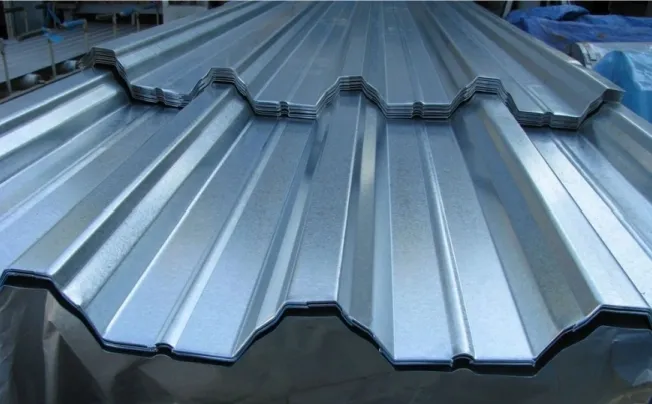

321 Stainless Steel Corrugated Plate Introduction

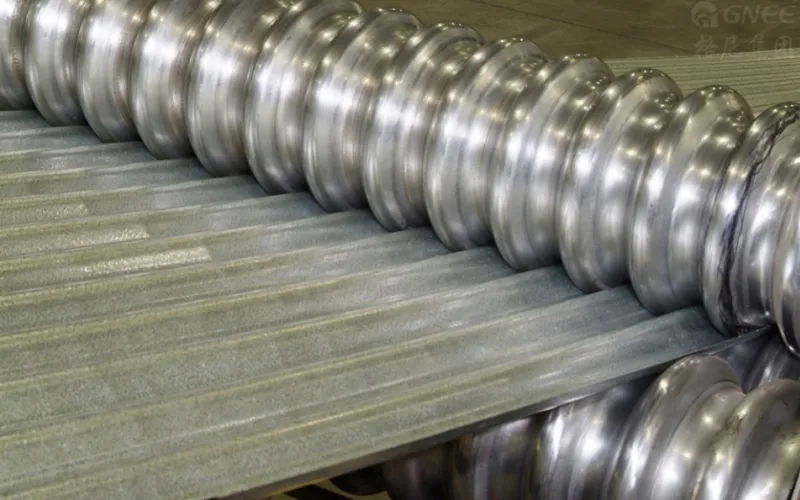

321 Stainless steel corrugated plate is made by rolling on 321 stainless steel plates to form various corrugated patterns. 321 stainless steel is an austenitic chromium-nickel stainless steel alloy that contains titanium as a stabilizing element. This makes it commonly used in various industries, including aerospace, automotive, chemical processing, medical, and architecture. Here are the chemical components of 321 stainless steel for your reference.
| Grade | C | Si | Mn | P | S | Ni | Cr | Ti |
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00-12.00 | 17.0-19.0 | 5c-0.70 |
321 Stainless Steel Corrugated Plate Specification
| Grade | 321 |
| Material | stainless steel plate |
| Standard | JIS, AISI, ASTM, GB, DIN, EN |
| Thickness | 0.2 – 12 mm |
| Width | 600 – 1500 mm (support customization) |
| Length | 800 – 5000 mm (support customization) |
| Tolerance | ±1% |
| Finish | brushed, color coated, sandblasted, polished, etc |
| Technique | cold rolled |
| Packing | PVC + waterproof or paper + wooden package |
321 Stainless Steel Corrugated Plate Features
321 stainless steel corrugated plate offers several features that make it a popular choice for various applications. Here are some key features you have to take a look at:
1. Heat Resistance
321 stainless steel corrugated plate can withstand high temperatures up to 900°C (1652°F), making it suitable for applications where heat is a concern. This is significantly higher than the maximum temperature range of 304 stainless steel corrugated plate, typically used up to 500°C (932°F).
2. Superior Corrosion Resistance
The addition of titanium to 321 stainless steel improves its resistance to intergranular corrosion. This makes it a suitable choice for applications where exposure to corrosive environments is a concern.
3. Good Processability
Grade 321 stainless steel exhibits excellent forming and welding characteristics. It can be easily formed into various shapes and sizes, making it suitable for fabrication processes.
4. High Stability
321 stainless steel corrugated plater also offers remarkable stability and strength, making it suitable for demanding applications. It has high creep and stress rupture properties, which make it ideal for pressure vessels and boiler applications.
5. Non-magnetic Property
321 stainless steel corrugated sheet is non-magnetic, which can be advantageous in certain applications.
6. Longevity and Low Maintenance
It offers unparalleled longevity and requires minimal maintenance, thereby reducing overall costs and ensuring long-term reliability in various applications.
321 Stainless Steel Corrugated Plate Applications
321 stainless steel corrugated plate finds applications in various industries due to its unique properties. Here are some common applications:

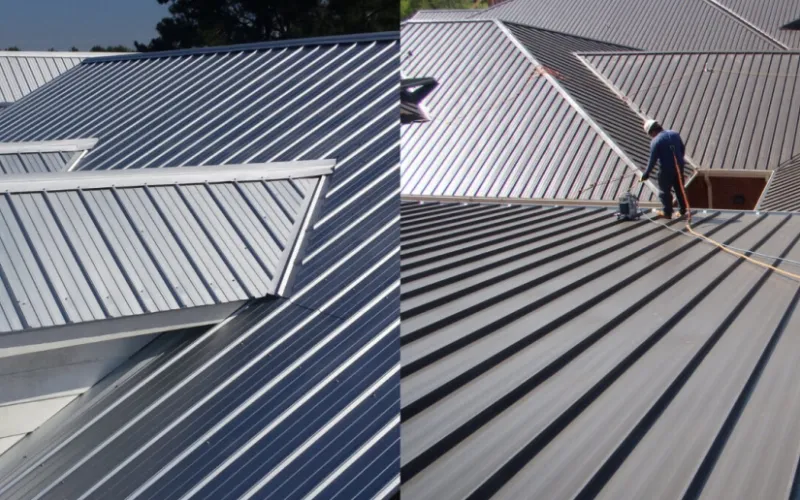

1. Construction
321 stainless steel corrugated plates can be used in construction for various applications, such as roofing, cladding, and structural components, where corrosion resistance and strength are required.
2. Automotive Industry
It can be used in the automotive industry for applications such as exhaust systems, catalytic converters, and other components that require high-temperature resistance and corrosion resistance.
3. Power Generation
321 stainless steel corrugated plates are widely used in power generation applications, including turbines, heat exchangers, and piping systems, where high-temperature performance and corrosion resistance are crucial.
4. Chemical Processing
The corrosion resistance of 321 stainless steel makes it a fitting choice for chemical processing equipment like reactors and storage tanks. Its ability to resist corrosion ensures the safety and efficiency of chemical processing operations.
5. Aerospace Industry
Owing to its exceptionally high temperature and corrosion resistance, the 321 stainless steel corrugated plate finds frequent use in aerospace components like exhaust systems and ducting. Its ability to withstand extreme conditions makes it a valuable asset in the aerospace sector.
6. Marine Applications
The corrosion resistance of 321 stainless steel makes it suitable for use in marine environments, where it can withstand exposure to saltwater and other corrosive elements.
7. Public Uses
321 Stainless steel corrugated plates can also be used in applications including food processing equipment, heat exchangers, pressure vessels, boiler components, dyeing and drying equipment, etc.

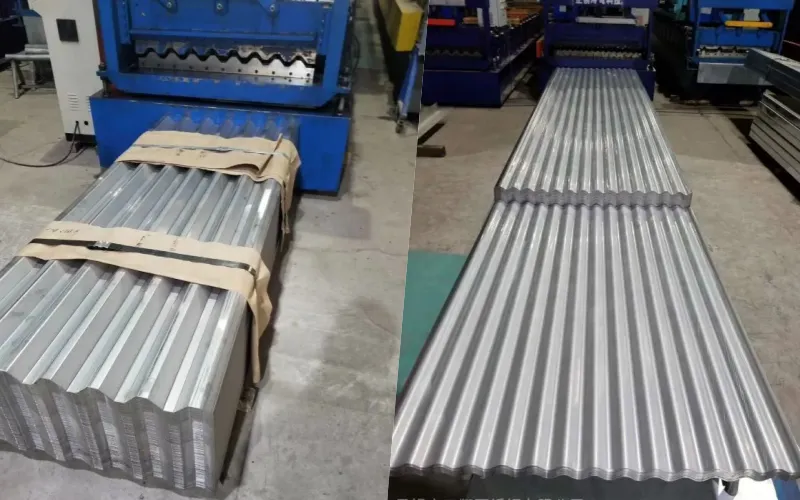

Buy 321 Stainless Steel Corrugated Plates from Gnee Steel
Gnee Steel is a reliable stainless steel supplier and exporter with more than 15 years of experience. We have advanced production technology and mature workers to produce high-quality stainless steel corrugated plates. They can be applied in popular stainless steel grades like 304, 316, and 321. If you have the need, come to contact us to learn more details!
